Grab Ship Unloader Price

FOB Reference Price:Get Latest Price
$100,000.00 - $1,000,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ship unloader
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
WEIHUA
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service
Type:
Grab Ship Unloader
Capacity:
600~2500 t/h
Product name:
grab ship unloader Price
Main electrical parts:
Schneider
Color:
Customer's Requirement
Brake Control:
Electric
Power Source:
3-phase A.C. 50Hz 380V
Crane type:
Gear Luffing
Work Duty:
A4-A7
Structure:
Frame
Supply Ability
Supply Ability:
10 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden case or standard exporting package or integer transportation
Port
Shanghai;Tianjin;Qingdao
Video Description

Grab Ship Unloader Price

Product Description :

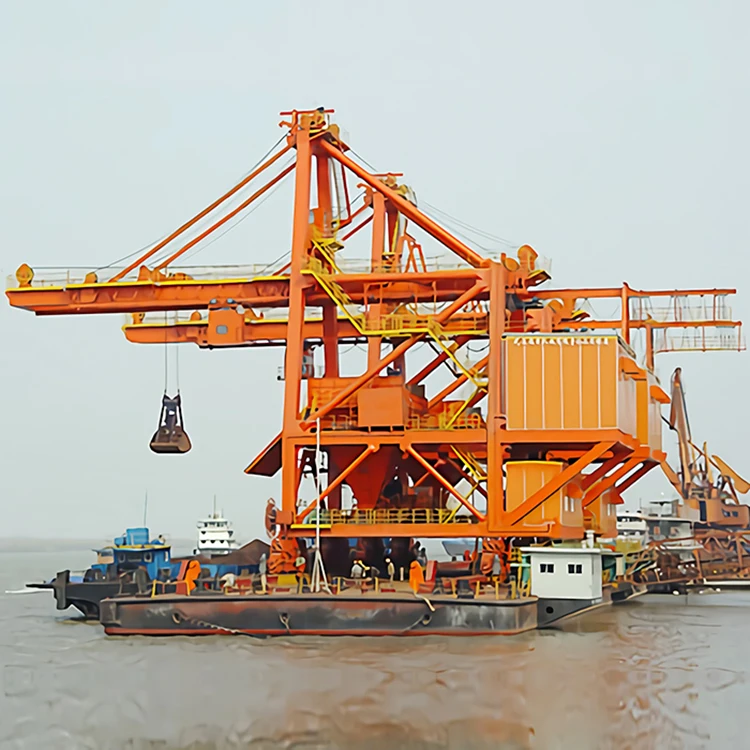

Grab bucket ship unloader is a special heavy duty equipment with satisfactory productivity and is widely applied at docks to unload bulk cargo ship of different sizes. Grab bucket ship unloader structure is mainly composed of steel structure, grab bucket lift and open and closing mechanism, trolley traverse mechanism, luffing mechanism, travel mechanism, machine cabin, elevator, grab bucket, spray system, electrical system, necessary safety related components and accessory devices. PLC and CMMS fault monitor system could be adopted in this type of product. And electronic antisway system could be provided at customer request.



Referenced criterion and standards are as follows: GB3811-2008 crane design criterion, GB6067-85lifting equipments safety regulation, ISO, FEM and JIS.

Contact us for more information !



 rough drawing :



Technical Specification :

Contact me for more parameters and quotation!

Rate production capacity1250t/h
Limit capacity1400t/h
Bulk cargoCoal
Ship size50000DWT
Hoisting capacity32t
Span22m
Base
Max.out reach of grabOut rail water side 28m
In rail waterside 12m
Height of grabAbove rail 21m
Below rail 19m
Luffing angle of boom0~80 °
Volume of hopper75m
Hoisting speed110~150m/min
Traverse speed180m/min
Traveling speed22m/min
Cabin traveling speed20m/min
Width of belt conveyor1600mm
Speed of belt conveyor2.5m
Boom hoisting time one way7min
Max.working load of wheel350KN
Crane rail recommedQU100
Motor capcity1240KW
Power supply(H.V. cable reel) 10KV. 50HZ



generally includes the following units:

1.Steel structure
2.Grab bucket lift and open and closing mechanism
3.Trolley traverse mechanism
4.Luffing mechanism
5.Travel mechanism
6.Mechine cabin
7.Elevator
8.Grab bucket
9.Spray system
10.Electrical system
11.Other accessory equipments for safety



Referenced standards:
1.GB3811-2008 crane design criterion
2.GB6067-85 lifting equipments safety regulation
3.ISO standards
4.FEM standards
5.JIS standards
Use of grab bucket ship unloader :
It has various applications, such as loading and unloading at port, materual handing at dockyard, ship building and repairing yard, metalluygy industry.



Advantages :

1.Quickened the turnover and the operation of loading and unloading.

2. High working efficiency, compact frame.

3. Calm movement, comfortable operation, safety and reliable.

4.Convenience maintenance, nice appearance and so on.

5.Crane drive: IP54 or IP44, level F insulation.

6.Especially suitable for the port lifting.

7. Designed according to your request.



 What's your phone number and email address?We'll give you our best offer !

Main Products


The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.

MORE PRODUCT SERIES



Quality Control



WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.

Company Information



From 1988 to the present, WEIHUA Group started from an area of less than 3 acres, ¥100,000  investment in the workshops to the current development of The employees is more than 6,800, the whole coverage production base of large crane is 3420000 square meters. WEIHUA annual sales reached ¥10,000,000 in 2006. Won social-wide recognition and praise by credit management and good service, took the lead go through the ISO9001 quality certification in the local area and same industry by its strict quality management and stable product manufacturing quality, WEIHUA initially forms the enterprise culture, enterprise image and widely brand influence with Weihua characteristics.

Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.

Packaging&Delivery



FAQ



Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
